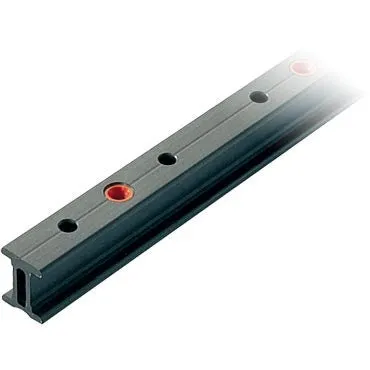

Ronstan Series 19 I Beam traveller track.
Ronstan 19mm I beam traveller systems have been providing reliable service for many years and are a well proven product.

Applications
•Mainsheet and self-tacking jib travellers on dinghies and small catamarans.

WIDTH: 19mm
TRACK FASTENINGS - To suit 5mm (3/16") countersunk fasteners at 100mm (3 15/16") centres.
STOP HOLES - 50mm (1 31/32") centres.

Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners

MINIMUM CURVE RADIUS
For 51mm (2") car . Min horizontal A curve radius = 400mm (15 3/4"). Min horizontal B curve radius = 400mm (15 3/4").
For 86mm (3 3/8") car . Min horizontal A curve radius = 1200mm (47 1/4"). Min horizontal B curve radius = not suitable.
For 105mm (4 3/16") car . Min horizontal A curve radius = 400mm (15 3/4"). Min horizontal B curve radius = not suitable.

Applications
•Mainsheet and self-tacking jib travellers on dinghies and catamarans
•Mainsheet systems on boats to 9m (28ft)

Materials
•Anodised aluminium alloy
